| Elec. Single Phase - Outdoor |
 | Mitsubishi Electric Electronic Watt-Hour Meter Single Phase Outdoor type is designed for shop or shopping mall business. Outdoor installation without cover box is suitable. Both stand alone and automatic network reading (AMR) installations are supported. |

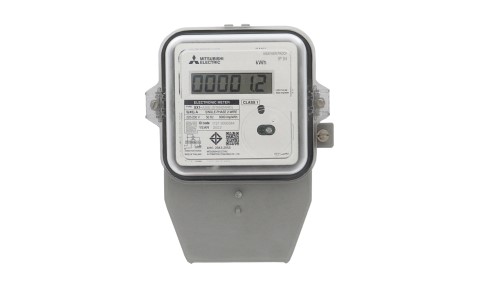

model : SX1-A30E
Rated current : 5(45)A
Reference voltage : 220-230V
Accuracy class : 1
Communication Port : -
installation : outdoor |  |
|
model : SX2-A30E
Rated current : 5(100)A
Reference voltage : 220-230V
Accuracy class : 1
Communication Port : -
installation : outdoor |  |
|

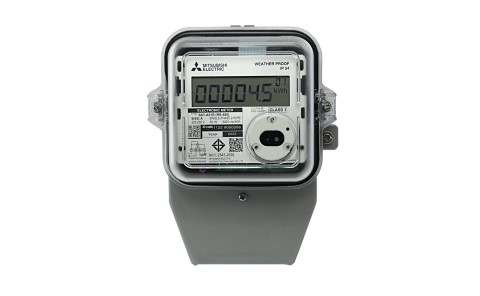

model : SX1-A31E
Rated current : 5(45)A
Reference voltage : 220-230V
Accuracy class : 1
Communication Port : RS-485
installation : outdoor |  |
|
model : MX2-A01E
Rated current : 10(100)A
Reference voltage : 220-240V
Accuracy class : 1
Communication Port : RS-485
installation : outdoor |  |
|
model : SMW110-C01E (BASIC)
Rated current : 10(100) A
Reference voltage : 1 Phase 2 Wire 220-230 V & 3 Phase 4 Wire 3x220/380-230/400 V
Accuracy Class : 1
Communication Port : RS-485
installation : outdoor | .jpg) |
|
model : SMW110-C07E (ADVANCE)
Rated current : 10(100) A
Reference voltage : 1 Phase 2 Wire 220-230 V & 3 Phase 4 Wire 3x220/380-230/400 V
Accuracy Class : 1
Communication Port : RS-485
installation : outdoor | .jpg) |
|
|
